OphthalMed LLC

Illuminated Laser Probe 23g

This 8ft laser/illumination probe is indicated for Endo-Ocular laser photocoagulation treatments in order to provide coagulation and illumination during surgical interventions at laser operating wavelength of 500 to 1,100nm. The laser fiber is terminated from one side with a connector that attaches the fiber end to the laser source. It is terminated from one side with a connector that attaches the fiber end to the illumination machine. From the other side, it is terminated with a handpiece and a 23 gauge stainless steel tubing that holds the tip of the laser and illumination fibers. A flexible plastic jacket covers and protects the length of the fiber.


  • Ergonomic and non-slip handpiece design.
  • Different connectors that suit most laser source models available on the market.
  • Sterilized by Ethylene Oxide, single-use, latex-free.
  • Dia 0.64 mm (23ga), Length 2.4 m (8 ft)

    Illumination Connectors



    With the Nidek Laser Connector - Push-In*

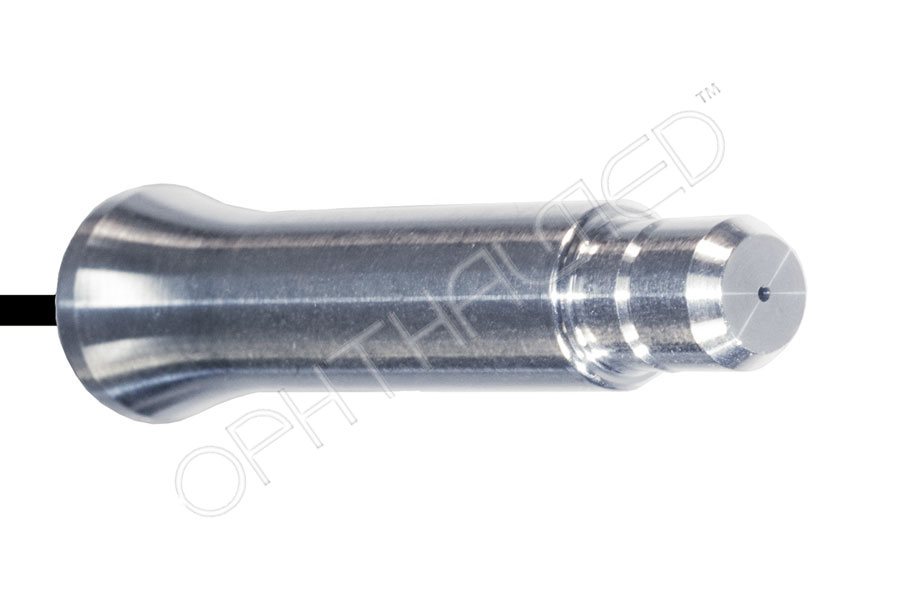

    Alcon Accurus And Constellation Illumination Connector*

    Compatible with standard and high brightness illumination

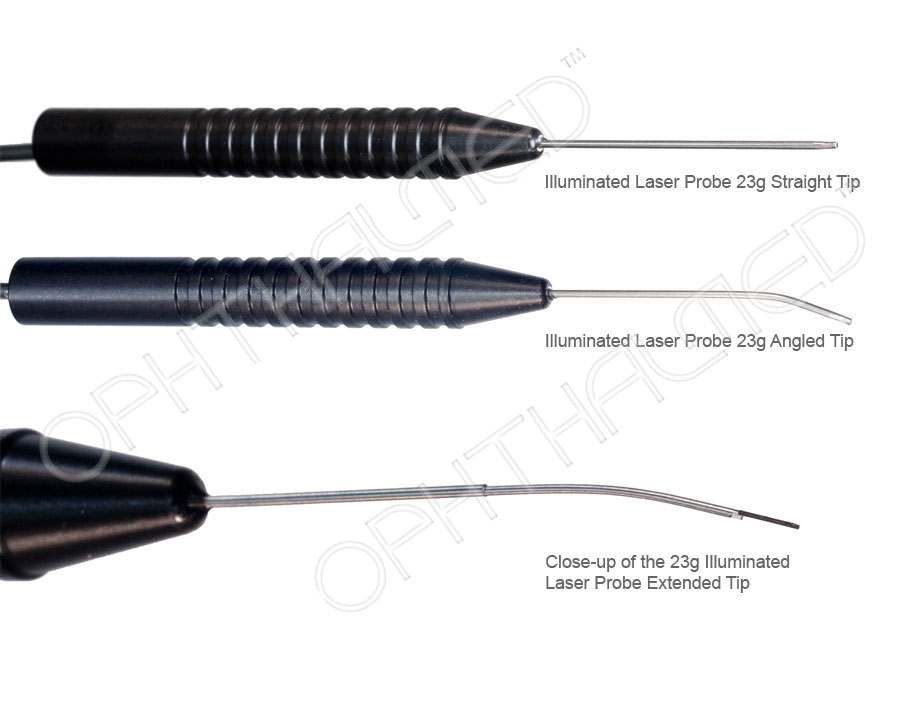

    • B525203          Straight Tip
    • B575203          Angled Tip
    • B585203          Straight Extended Tip
    • B5B5203          Angled Extended Tip

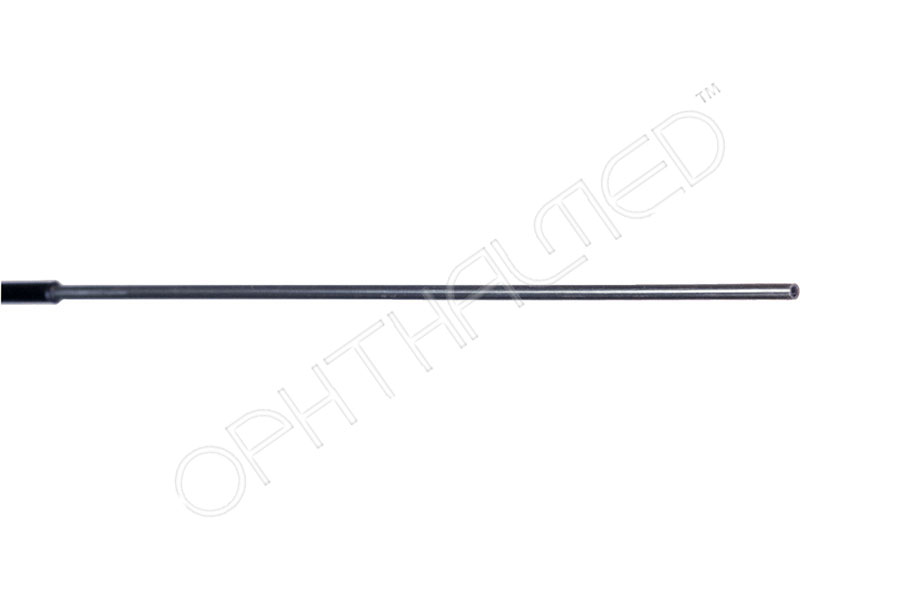

    19 Gauge Illumination Connector

    • B525103          Straight Tip
    • B575103          Angled Tip
    • B585103          Straight Extended Tip
    • B5B5103          Angled Extended Tip

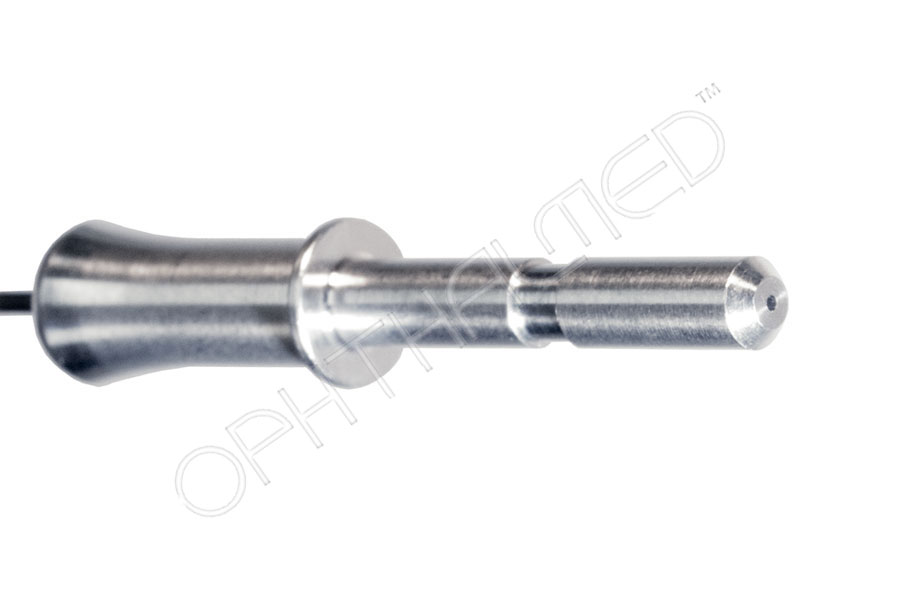

    Alcon Ocutome Illumination Connector*

    • B525303          Straight Tip
    • B575303          Angled Tip
    • B585303          Straight Extended Tip
    • B5B5303          Angled Extended Tip

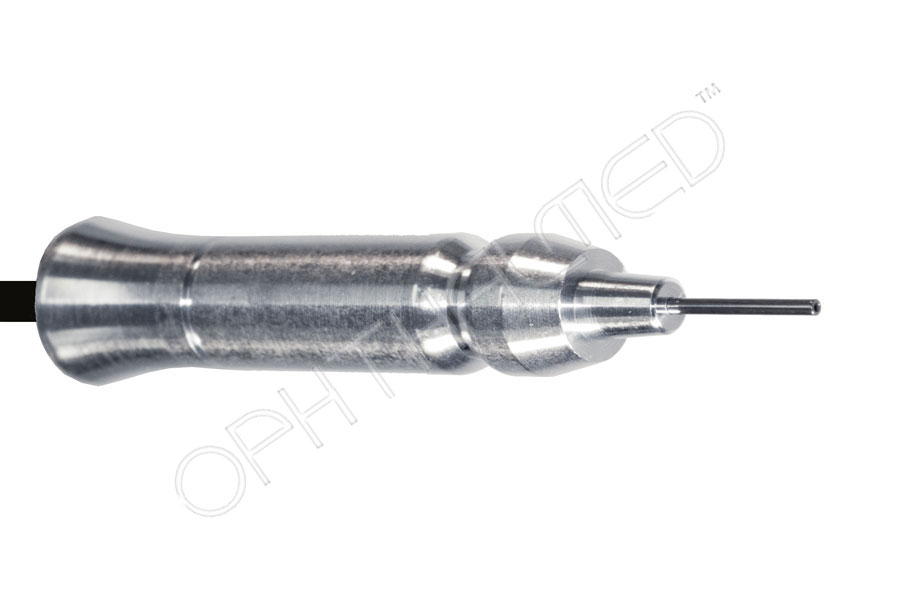

    B&L Stellaris PC Illumination Connector*

    Compatible with high brightness illumination

    • B525503          Straight Tip
    • B575503          Angled Tip
    • B585503          Straight Extended Tip
    • B5B5503          Angled Extended Tip

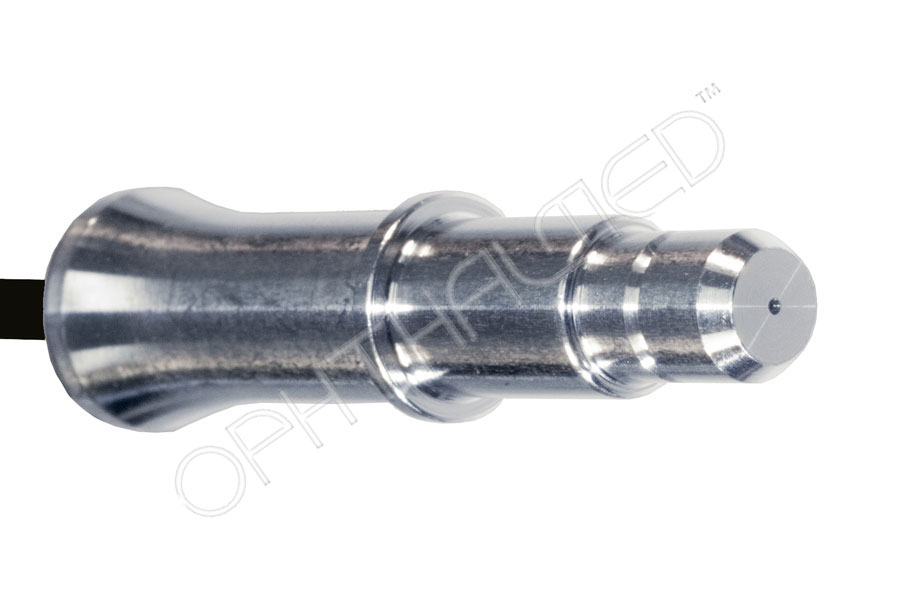

    B&L / Storz Millenium Illumination Connector*

    • B525403          Straight Tip
    • B575403          Angled Tip
    • B585403          Straight Extended Tip
    • B5B5403          Angled Extended Tip

    *Trademarks are property of their respective owners
