OphthalMed LLC

Laser Probe 20g

This 8ft laser probe is indicated for Endo-Ocular laser photocoagulation treatments in order to provide coagulation during surgical interventions at laser operating wavelength of 500 to 1,100nm. It is terminated from one side with a connector that attaches the fiber end to the laser source. From the other side, it is terminated with a handpiece and a 20 gauge stainless steel tubing that holds the tip of the fiber. A flexible plastic jacket covers and protects the length of the fiber.





Features

  • Ergonomic and non-slip handpiece design.
  • Tapered tip for ease of insertion through the sclerotomy sites during the surgical procedure.
  • Different connectors that suit most laser source models available on the market.
  • Sterilized by Ethylene Oxide, single-use, latex-free.
  • Dia 0.91 mm (20ga). Length 2.4 m (8 ft)



    Tips

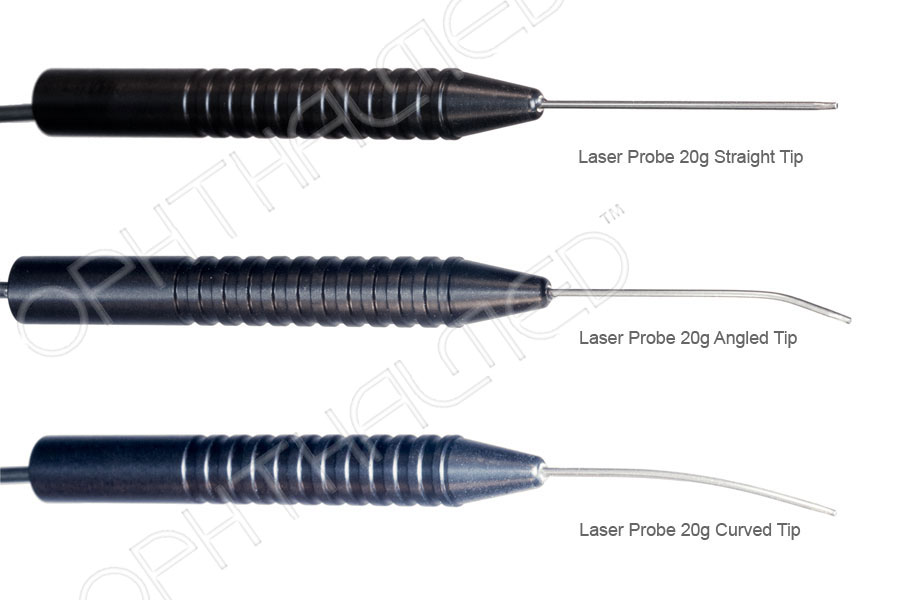

    Click on the below image for a close-up of the tip variations for the 20g laser probe.


    Alcon / Zeiss / Ellex Connector*

    SMA 905 connectivity

    • A217000          Straight Tip
    • A237000          Angled Tip
    • A257000          Curved Tip






    Iridex Connector*

    • A218000          Straight Tip
    • A238000          Angled Tip
    • A258000          Curved Tip






    DORC (non-USA)*

    • A213000          Straight Tip
    • A233000          Angled Tip
    • A253000          Curved Tip






    Quantel Vitra / Supra Connector (Direct)*

    • A219000          Straight Tip
    • A239000          Angled Tip
    • A259000          Curved Tip




    Lumenis Connector*

    • A21A000          Straight Tip
    • A23A000          Angled Tip
    • A25A000          Curved Tip






    Nidek Connector - Threaded*

    • A212000          Straight Tip
    • A232000          Angled Tip
    • A252000          Curved Tip






    Nidek Connector - Push-In*

    • A215000          Straight Tip
    • A235000          Angled Tip
    • A255000          Curved Tip




    Lightmed*

    • A21B000          Straight Tip
    • A23B000          Angled Tip
    • A25B000          Curved Tip






    HGM Connector No Bar Code*

    • A214000          Straight Tip
    • A234000          Angled Tip
    • A254000          Curved Tip




    *Trademarks are property of their respective owners
