This 8ft laser probe is indicated for Endo-Ocular laser photocoagulation treatments in order to provide coagulation during surgical interventions at laser operating wavelength of 500 to 1,100nm.
It is terminated from one side with a connector that attaches the fiber end to the laser source.
From the other side, it is terminated with a handpiece and a 25 gauge stainless steel tubing that holds the tip of the fiber.
A flexible plastic jacket covers and protects the length of the fiber.
Features
Ergonomic and non-slip handpiece design.
25ga tip for faster patient post operative recovery.
Different connectors that suit most laser source models available on the market.
Sterilized by Ethylene Oxide, single-use, latex-free.
Dia 0.51 mm (25ga). Length 2.4 m (8 ft)
Tips

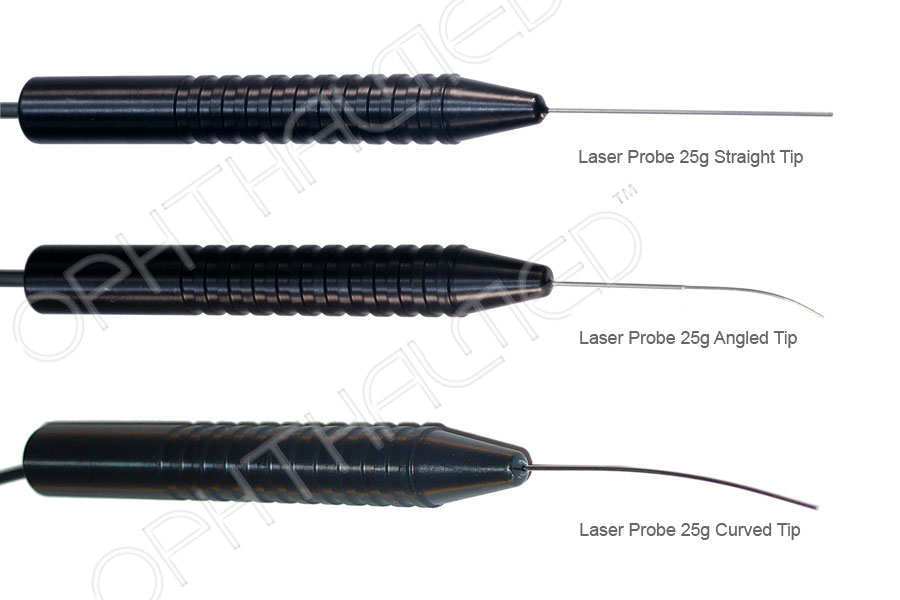

Click on the
below image for a
close-up of
the tip
variations
for the 25g
laser probe.
Alcon / Zeiss / Ellex
Connector*
SMA 905 connectivity
A327000
Straight Tip
A377000
Angled Tip
A367000
Curved Tip
Iridex
Connector*
A328000
Straight Tip
A378000
Angled Tip
A368000
Curved Tip
DORC (non-USA)*
A323000
Straight Tip
A373000
Angled Tip
A363000 Curved Tip
Quantel Vitra /
Supra
Connector
(Direct)*
A329000
Straight Tip
A379000
Angled Tip
A369000
Curved Tip
Lumenis
Connector*
A32A000
Straight Tip
A37A000
Angled Tip
A36A000
Curved Tip
Nidek
Connector -
Threaded*
A322000
Straight Tip
A372000
Angled Tip
A362000
Curved Tip
Nidek
Connector -
Push-In*
A325000
Straight Tip
A375000
Angled Tip
A365000
Curved Tip
Lightmed*
A32B000
Straight Tip
A37B000
Angled Tip
A36B000
Curved Tip
HGM
Connector No Bar
Code*
A324000
Straight Tip
A374000
Angled Tip
A364000
Curved Tip
*Trademarks are property of their respective owners
